코드를 복잡하게 만들면 안될까?에 답을 해준 문서
목표 스프레드시트
구현 방식에 따른 차이가 존재할 수 있다.
하지만 기존 방식에 비해 간결하게 서비스를 구현할 수 있고,
수정, 변경, 삭제, 삽입 시에 일어날 수 있는 코드 수정이 data Model에 한정된다.

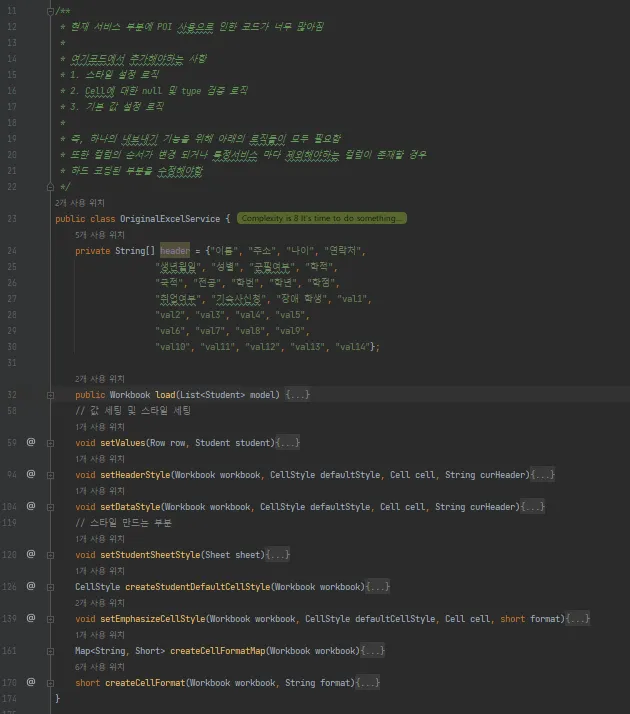

기존 코드 (8점)

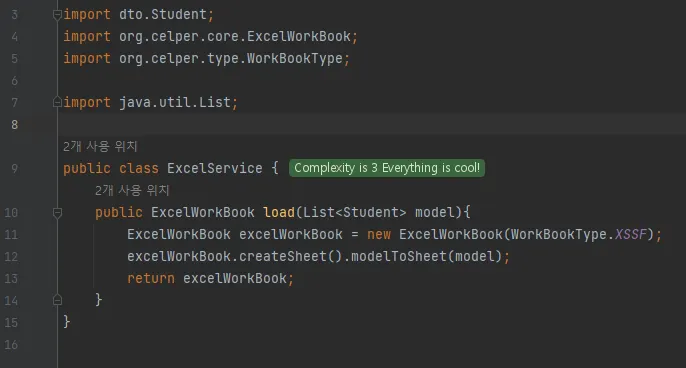

celper 사용 코드 (3점)
package service;
import dto.Student;
import org.apache.poi.ss.usermodel.*;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* 현재 서비스 부분에 POI 사용으로 인한 코드가 너무 많아짐
*
* 여기코드에서 추가해야하는 사항
* 1. 스타일 설정 로직
* 2. Cell에 대한 null 및 type 검증 로직
* 3. 기본 값 설정 로직
*
* 즉, 하나의 내보내기 기능을 위해 아래의 로직들이 모두 필요함
* 또한 컬럼의 순서가 변경 되거나 특정서비스 마다 제외해야하는 컬럼이 존재할 경우
* 하드 코딩된 부분을 수정해야함
*/
public class OriginalExcelService {
private String[] header = {"이름", "주소", "나이", "연락처",
"생년월일", "성별", "군필여부", "학적",
"국적", "전공", "학번", "학년", "학점",
"취업여부", "기숙사신청", "장애 학생", "val1",
"val2", "val3", "val4", "val5",
"val6", "val7", "val8", "val9",
"val10", "val11", "val12", "val13", "val14"};
public Workbook load(List<Student> model) {
Workbook workbook = new XSSFWorkbook();
// 엑셀 오브젝트 내에 시트 생성
Sheet sheet = workbook.createSheet();
setStudentSheetStyle(sheet);
CellStyle studentDefaultCellStyle = createStudentDefaultCellStyle(workbook);
// 헤더에 삽입
int rowIndex = 0;
Row headerRow = sheet.createRow(rowIndex++);
for (int i = 0; i < header.length; i++) {
Cell cell = headerRow.createCell(i);
setHeaderStyle(workbook, studentDefaultCellStyle, cell, header[i]);
cell.setCellValue(header[i]);
}
// 바디에 데이터 삽입
for (Student student : model) {
Row bodyRow = sheet.createRow(rowIndex++);
for (int i = 0; i < header.length; i++) {
setDataStyle(workbook, studentDefaultCellStyle, bodyRow.createCell(i), header[i]);
}
setValues(bodyRow, student);
}
return workbook;
}
// 값 세팅 및 스타일 세팅
void setValues(Row row, Student student){
row.getCell(0).setCellValue(student.getName());
row.getCell(1).setCellValue(student.getAddress());
row.getCell(2).setCellValue(student.getAge());
row.getCell(3).setCellValue(student.getPhoneNumber());
row.getCell(4).setCellValue(student.getDateBirth());
row.getCell(5).setCellValue(student.getGender().toString());
// 기본값 설정
row.getCell(6).setCellValue(student.getMilitaryServiceStatus() == null ? "N" : student.getMilitaryServiceStatus());
row.getCell(7).setCellValue(student.getSchoolRecordStatus().toString());
row.getCell(8).setCellValue(student.getNationality());
row.getCell(9).setCellValue(student.getMajor().toString());
row.getCell(10).setCellValue(student.getStudentID());
row.getCell(11).setCellValue(student.getSchoolYear());
row.getCell(12).setCellValue(student.getGrade());
row.getCell(13).setCellValue(student.getEmploymentStatus().toString());
row.getCell(14).setCellValue(student.isDormitory());
row.getCell(15).setCellValue(student.isStudentsDisabilities());
row.getCell(16).setCellValue(student.getVal1());
row.getCell(17).setCellValue(student.getVal2());
row.getCell(18).setCellValue(student.getVal3());
row.getCell(19).setCellValue(student.getVal4());
row.getCell(20).setCellValue(student.getVal5());
row.getCell(21).setCellValue(student.getVal6());
row.getCell(22).setCellValue(student.getVal7());
row.getCell(23).setCellValue(student.getVal8());
row.getCell(24).setCellValue(student.getVal9());
row.getCell(25).setCellValue(student.getVal10());
row.getCell(26).setCellValue(student.getVal11());
row.getCell(27).setCellValue(student.getVal12());
row.getCell(28).setCellValue(student.getVal13());
row.getCell(29).setCellValue(student.getVal14());
}
void setHeaderStyle(Workbook workbook, CellStyle defaultStyle, Cell cell, String curHeader){
switch (curHeader){
case "이름":
case "국적":
setEmphasizeCellStyle(workbook, defaultStyle, cell,createCellFormat(workbook,""));
break;
default:
cell.setCellStyle(defaultStyle);
}
}
void setDataStyle(Workbook workbook, CellStyle defaultStyle, Cell cell, String curHeader){
Map<String, Short> cellFormatMap = createCellFormatMap(workbook);
switch (curHeader){
case "이름":
case "학년":
setEmphasizeCellStyle(workbook, defaultStyle, cell, cellFormatMap.get(curHeader) == null ? 0 : cellFormatMap.get(curHeader));
break;
default:
CellStyle cellStyle = workbook.createCellStyle();
cellStyle.cloneStyleFrom(defaultStyle);
cellStyle.setDataFormat(cellFormatMap.get(curHeader) == null ? 0 : cellFormatMap.get(curHeader));
cell.setCellStyle(cellStyle);
}
}
// 스타일 만드는 부분
void setStudentSheetStyle(Sheet sheet){
sheet.setVerticallyCenter(true);
sheet.setFitToPage(true);
sheet.setDefaultRowHeight((short) 300);
sheet.setDefaultColumnWidth(20);
}
CellStyle createStudentDefaultCellStyle(Workbook workbook){
CellStyle defaultCellStyle = workbook.createCellStyle();
Font defaultFont = workbook.createFont();
defaultFont.setFontName("명조");
defaultCellStyle.setFont(defaultFont);
defaultCellStyle.setBorderTop(BorderStyle.THIN);
defaultCellStyle.setBorderBottom(BorderStyle.THIN);
defaultCellStyle.setBorderLeft(BorderStyle.THIN);
defaultCellStyle.setBorderRight(BorderStyle.THIN);
return defaultCellStyle;
}
void setEmphasizeCellStyle(Workbook workbook, CellStyle defaultCellStyle, Cell cell, short format){
Font font = workbook.createFont();
CellStyle cellStyle = workbook.createCellStyle();
cellStyle.cloneStyleFrom(defaultCellStyle);
cellStyle.setBorderTop(BorderStyle.DOUBLE);
cellStyle.setBorderBottom(BorderStyle.DOUBLE);
cellStyle.setBorderLeft(BorderStyle.DOUBLE);
cellStyle.setBorderRight(BorderStyle.DOUBLE);
cellStyle.setFillPattern(FillPatternType.SOLID_FOREGROUND);
cellStyle.setFillBackgroundColor(IndexedColors.YELLOW.getIndex());
font.setFontName("굴림");
font.setBold(true);
cellStyle.setFont(font);
cellStyle.setDataFormat(format);
cell.setCellStyle(cellStyle);
}
Map<String, Short> createCellFormatMap(Workbook workbook){
Map<String, Short> map = new HashMap<>();
map.put("이름", createCellFormat(workbook, "@ 학생"));
map.put("주소", createCellFormat(workbook, "@ (행정코드)"));
map.put("나이", createCellFormat(workbook, "# 세 (만)"));
map.put("연락처", createCellFormat(workbook, "@ - @ - @"));
map.put("국적", createCellFormat(workbook, "# - 국가 코드"));
return map;
}
short createCellFormat(Workbook workbook, String format){
DataFormat dataFormat = workbook.createDataFormat();
return dataFormat.getFormat(format);
}
}
JavaScript
복사
package dto;
import domain.*;
import java.time.LocalDate;
@lombok.Builder
@lombok.NoArgsConstructor
@lombok.AllArgsConstructor
@lombok.Getter
public class Student {
private String name;
private String address;
private int age;
private String phoneNumber;
private LocalDate dateBirth;
private Gender gender;
private String militaryServiceStatus;
private ClassificationSchoolRecord schoolRecordStatus;
private int nationality;
private Major major;
private String studentID;
private int schoolYear;
private double grade;
private EmploymentStatus employmentStatus;
private boolean isDormitory;
private boolean isStudentsDisabilities;
// 필드 생성을 위해서
private int val1;
private int val2;
private int val3;
private int val4;
private int val5;
private int val6;
private int val7;
private int val8;
private int val9;
private int val10;
private int val11;
private int val12;
private int val13;
private int val14;
}
Java
복사
package service;
import dto.Student;
import org.celper.core.ExcelWorkBook;
import org.celper.type.WorkBookType;
import java.util.List;
public class ExcelService {
public ExcelWorkBook load(List<Student> model){
ExcelWorkBook excelWorkBook = new ExcelWorkBook(WorkBookType.XSSF);
excelWorkBook.createSheet().modelToSheet(model);
return excelWorkBook;
}
}
Java
복사
package dto;
import domain.*;
import org.celper.annotations.*;
import org.celper.type.BuiltinCellFormatType;
import style.EmphasizeCellStyle;
import style.StudentSheetStyle;
import java.time.LocalDate;
@lombok.Builder
@lombok.NoArgsConstructor
@lombok.AllArgsConstructor
@lombok.Getter
@SheetStyle(StudentSheetStyle.class)
public class Student {
@Column("이름")
@CellFormat(customFormat = "@ 학생")
@ColumnStyle(dataAreaStyle = EmphasizeCellStyle.class, headerAreaStyle = EmphasizeCellStyle.class)
private String name;
@Column("주소")
@CellFormat(customFormat = "@ (행정코드)")
private String address;
@Column("나이")
@CellFormat(customFormat = "# 세 (만)")
private int age;
@Column("연락처")
@CellFormat(customFormat = "@ - @ - @")
private String phoneNumber;
@Column("생년월일")
@CellFormat(builtinFormat = BuiltinCellFormatType.SIMPLE_DATE)
private LocalDate dateBirth;
@Column("성별")
private Gender gender;
@Column("군필여부")
@DefaultValue("N")
private String militaryServiceStatus;
@Column("학적")
private ClassificationSchoolRecord schoolRecordStatus;
@Column("국적")
@CellFormat(customFormat = "# - 국가 코드")
@ColumnStyle(headerAreaStyle = EmphasizeCellStyle.class)
private int nationality;
@Column("전공")
private Major major;
@Column("학번")
private String studentID;
@Column("학년")
@ColumnStyle(dataAreaStyle = EmphasizeCellStyle.class)
private int schoolYear;
@Column("학점")
private double grade;
@Column("취업여부")
private EmploymentStatus employmentStatus;
@Column("기숙사신청")
private boolean isDormitory;
@Column("장애 학생")
private boolean isStudentsDisabilities;
// 필드 생성을 위해서
@Column("val1")
private int val1;
@Column("val2")
private int val2;
@Column("val3")
private int val3;
@Column("val4")
private int val4;
@Column("val5")
private int val5;
@Column("val6")
private int val6;
@Column("val7")
private int val7;
@Column("val8")
private int val8;
@Column("val9")
private int val9;
@Column("val10")
private int val10;
@Column("val11")
private int val11;
@Column("val12")
private int val12;
@Column("val13")
private int val13;
@Column("val14")
private int val14;
}
Java
복사
